PADAUK PMS150C-U06 Microcontrollers – 100 Pieces | SOT23-6

A 100-piece bundle of PADAUK PMS150C-U06 microcontrollers in the SOT23-6 package for embedded electronics projects.

General-purpose control at ultra-low cost

The PMS150C is a versatile, programmable 8-bit microcontroller. Your firmware defines how it responds to inputs, makes decisions and controls outputs, giving you a flexible foundation for automation, interactive electronics, lighting and motion control, and compact display interfaces.

At just USD $0.025 per chip in our USD $2.50, 100-piece bundle, before shipping and tax, it is well suited to cost-sensitive, high-volume embedded products where every cent matters, once the firmware is finalized.

Capabilities you can build on

• Input and decision-making: Read switches and digital sensor signals, apply logic and manage operating states in firmware.
• Timing and sequencing: Coordinate delays, timed actions and repeated control sequences with the on-chip timers.
• PWM and output control: Generate control signals for lighting and motion applications through suitable external drivers.
• User interaction: Combine button inputs, mode selection and status outputs to create responsive interfaces.
• Compact display interfaces: Drive text, numbers and simple graphics on the 0.32-inch OLED using our linked PMS150C library.

Design considerations

Select the capabilities your application needs and verify the firmware fits 1K-word program memory and 64 bytes of RAM. The U06 package provides four signal pins (PA3–PA6); PA5 has open-drain output. Use suitable power, interface and driver circuitry, and check the official PMS150C documentation for pin functions and electrical limits. Develop and test before one-time programming.

Bundle contents

• 100 × blank (unprogrammed) PADAUK PMS150C-U06 microcontrollers

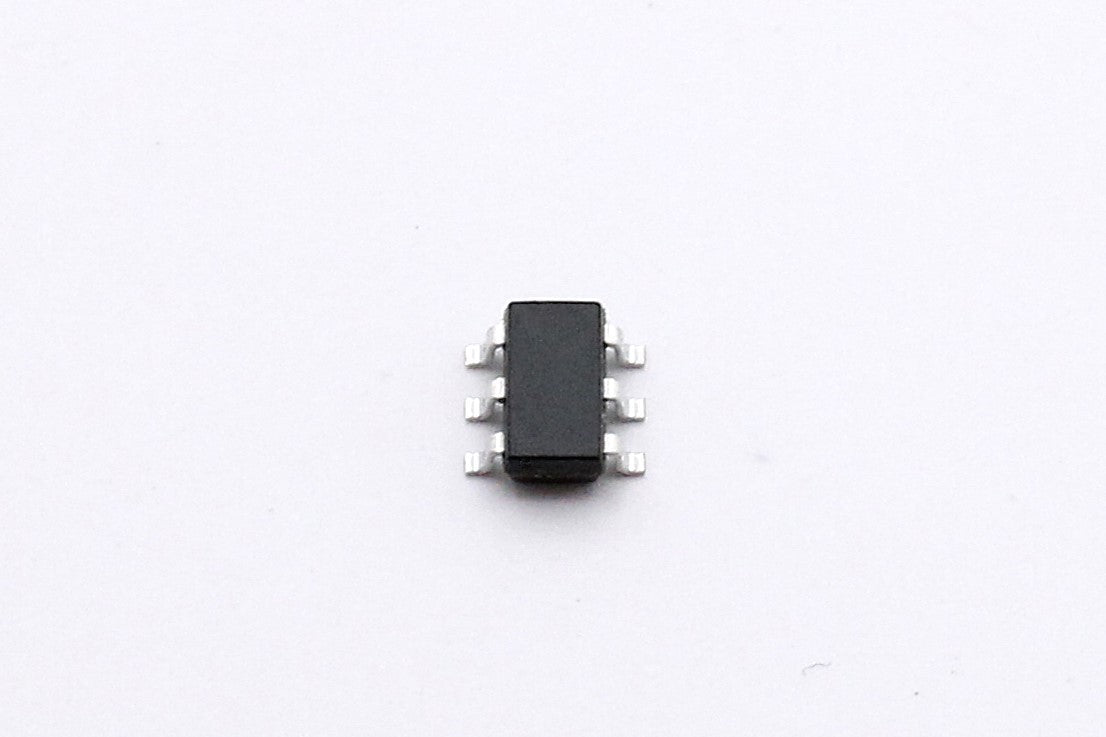

• Package: SOT23-6

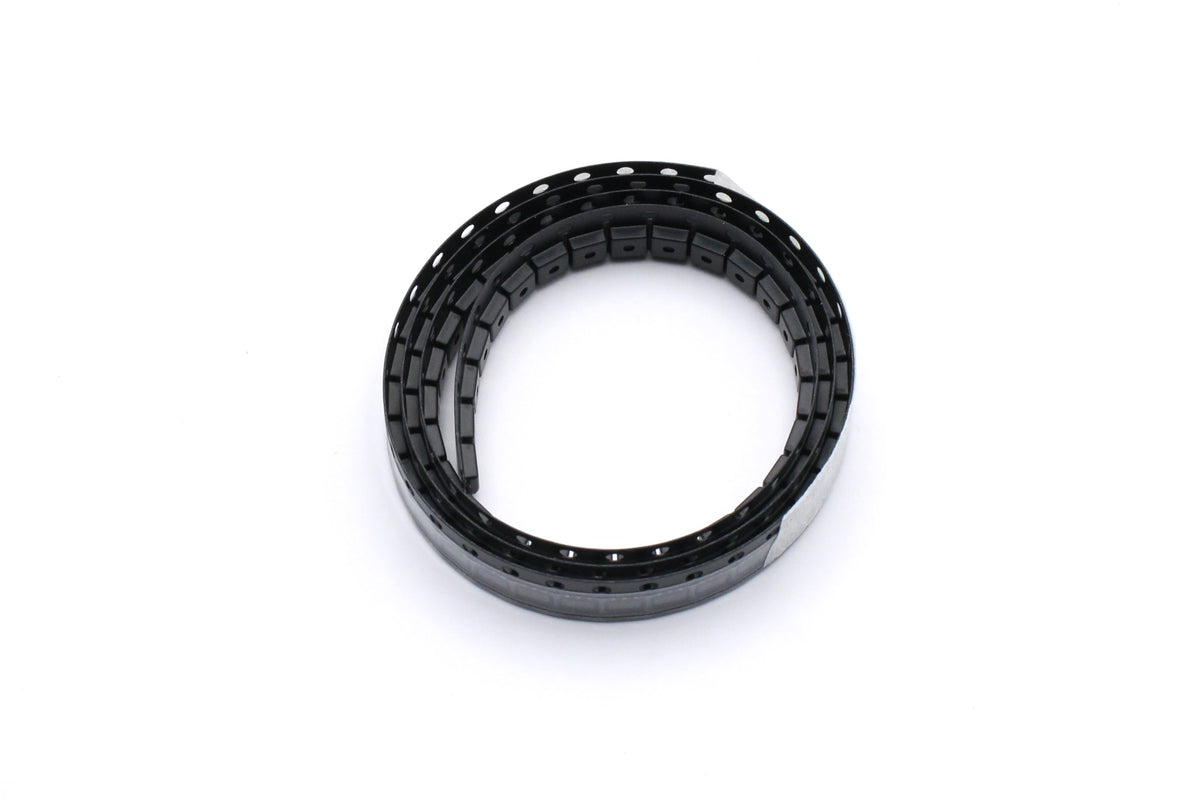

• Packaging: Cut tape
• One purchased bundle contains 100 chips.

Device features

• 1K-word OTP program memory
• 64 bytes of data RAM
• 16-bit hardware timer
• 8-bit hardware timer with PWM generator
• General-purpose comparator

Check the pinout and programming requirements against your design before ordering. Refer to the PADAUK PMS150C product documentation for full specifications.

One-time programming (OTP)

The PMS150C-U06 supports one-time programming (OTP) only. Once programmed, its program memory cannot be erased and reprogrammed. Confirm and test your firmware before programming the chips.

Official PADAUK IDE resources

• PADAUK IDE software and user manual downloads — official IDE & ICE page.
• PMS150C software, tools and datasheet — select the Software & Tools section for the official IDE download.

Complete Your Project

• PADAUK 5S-P-003C Programmer: Write your tested firmware to supported PADAUK chips.
• PADAUK 5S-I-S02B In-Circuit Emulator: Develop and test your PMS150C firmware before one-time programming.
• Tiny 0.32-Inch OLED Display Module: A compact 60x32 I2C display for text, readings and simple graphics; requires 3.3V power and logic.

Building a tiny display project? Our open-source PMS150C 0.32-inch OLED library includes drawing routines and an application template for the PMS150C with the SSD1315 0.32-inch OLED, using PADAUK Mini-C and IDE 1.04C1. Choose only the features you need, check the build fits the chip’s memory, and test your wiring and firmware before programming OTP chips.
