0.96" SSD1315 128x64 OLED w/ 3-way Nav Push Button

What is it?

Bring your projects to life with a compact, intuitive user interface! This breakout board combines a crisp 0.96" SSD1315 (SSD1306 compatible) I2C 128x64 monochrome OLED display with a 3-way navigation push button, giving you everything you need to create professional-looking menus and interfaces in a remarkably small package.

Unlike a standard push button, the integrated navigation switch can be moved UP, DOWN, or pressed inward, allowing users to scroll through menus, adjust settings, and make selections using just a single control. The result is a clean, minimal interface that's perfect for handheld and space-constrained projects.

Whether you're building a portable instrument, smart gadget, or custom controller, this board makes adding an interactive display quick and easy.

Features:

• 0.96" SSD1315 monochrome OLED display
• Easy I2C interface
• Bright, high-contrast display that's easy to read

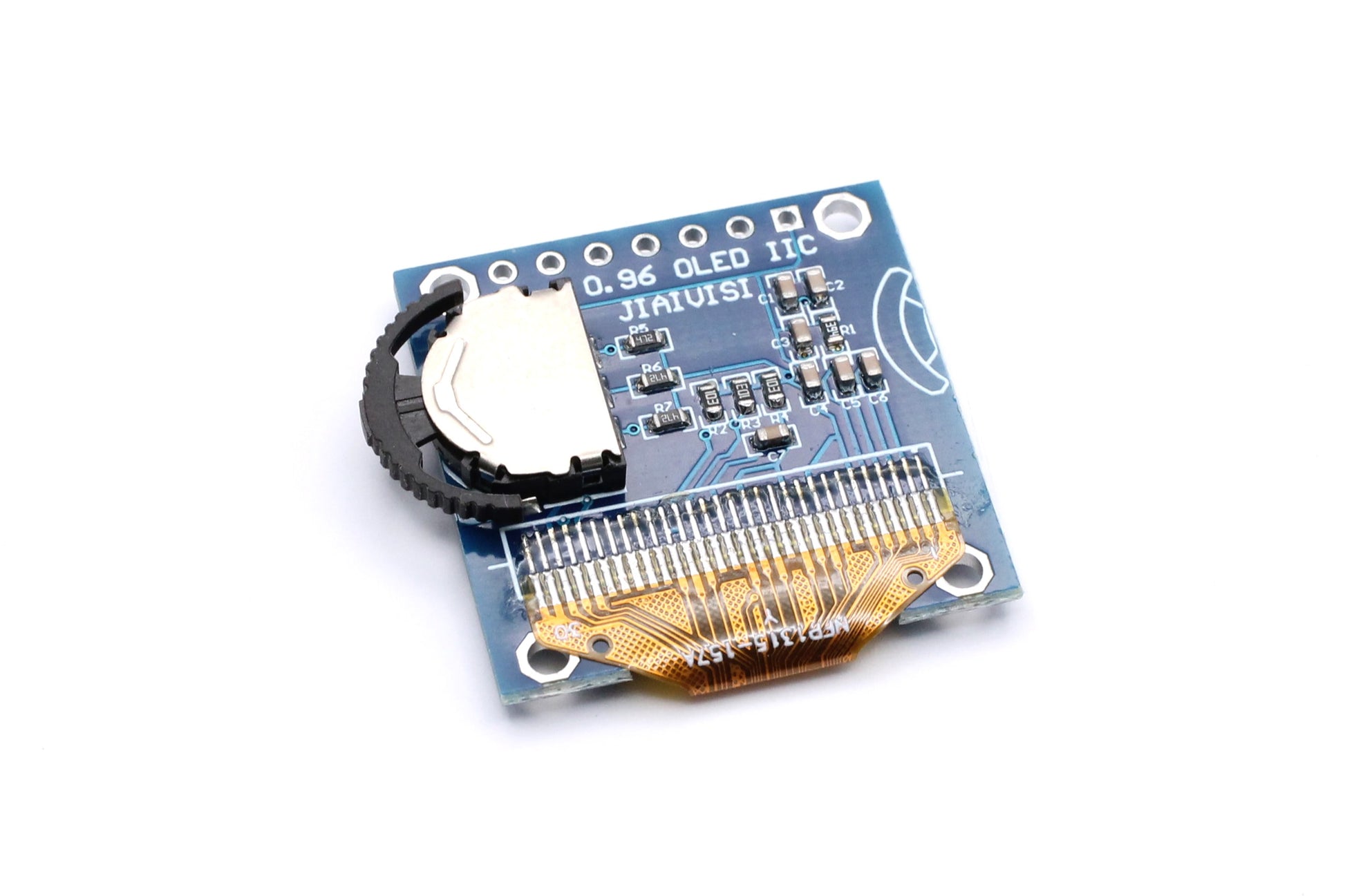

• Integrated 3-way navigation switch (UP, DOWN, CENTER PUSH)
• Compact all-in-one user interface solution
• Great for Arduino, ESP32, Raspberry Pi, STM32, and many other microcontrollers

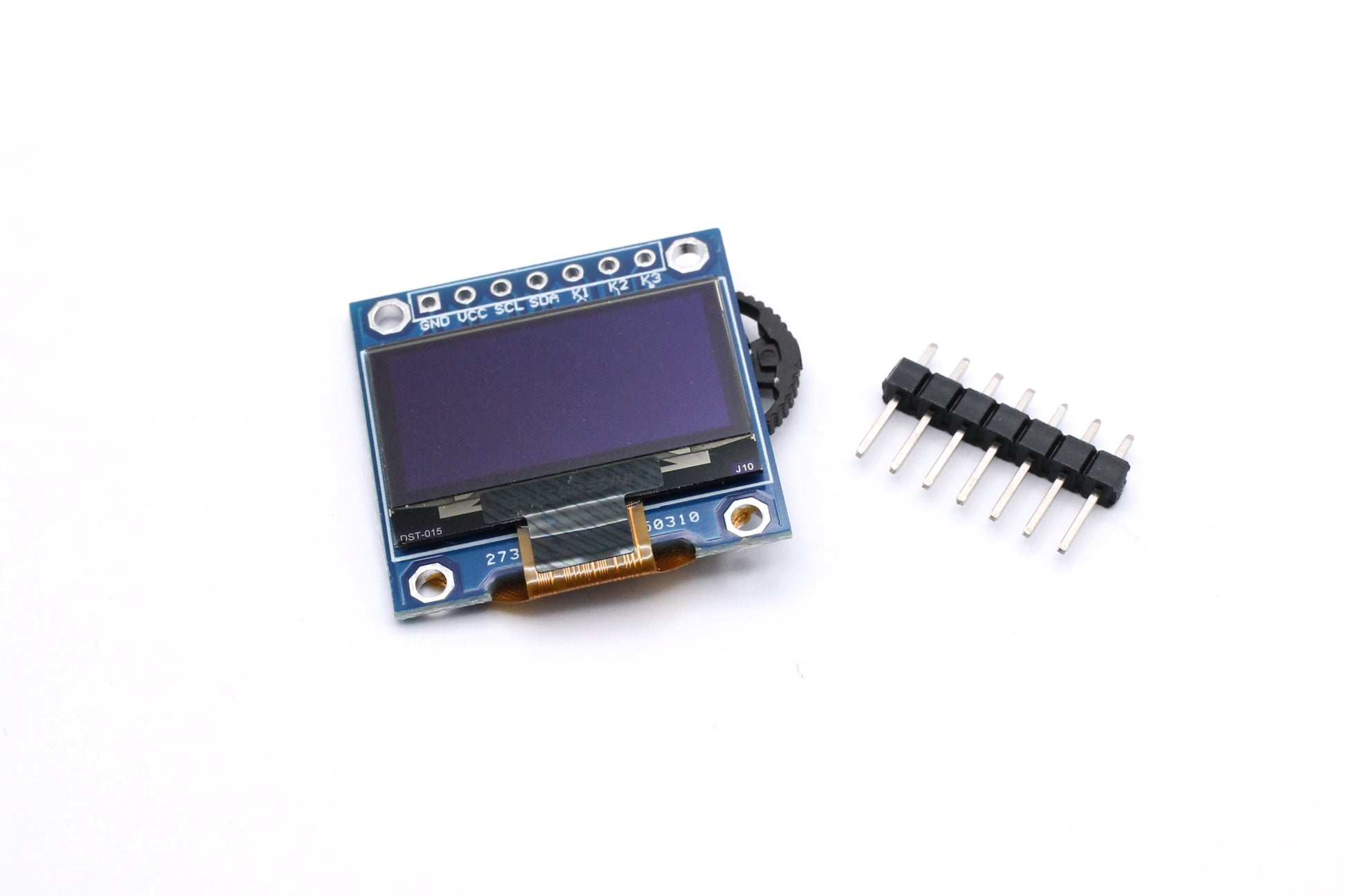

The breakout board has the following pinout:

• GND
• VCC (3.3V)
• SCL (I2C Clock)
• SDA (I2C Data)
• K1 (UP - pulled to GND when activated)
• K2 (DOWN - pulled to GND when activated)
• K3 (CENTER PUSH - pulled to GND when activated)

It can be used with standard open source Arduino Libraries such as: Adafruit_SSD1306

Perfect For:

• Portable test equipment
• Sensor readout displays
• Battery and power monitors
• Configuration and settings menus
• Smart home controllers
• Robotics user interfaces
• Handheld gaming projects
• MIDI controllers
• Audio equipment and synthesizers
• Digital clocks and timers
• IoT devices
• Portable data loggers
• DIY thermostats
• Custom control panels
• Menu-driven electronic projects

Why You'll Love It

A display is only as useful as the interface used to control it. By combining a high-quality OLED with a 3-way navigation button, this breakout provides an elegant way to build intuitive user interfaces without cluttering your project with multiple switches.

Scroll through menus, browse options, adjust values, and confirm selections—all with one compact control. It saves wiring, conserves GPIO pins, reduces panel space, and gives your project a polished, professional feel.

Whether you're designing a sophisticated handheld device or simply need an easy way to interact with your electronics, this breakout board is an excellent foundation for creating clean and user-friendly interfaces.
